£3,499

Bosch Performance CX (Gen4) 85Nm, Shimano Deore 10-speed Linkglide drivetrain, 625Wh Integrated battery, Intuvia 100 display

Colour

Frame Size

Clear

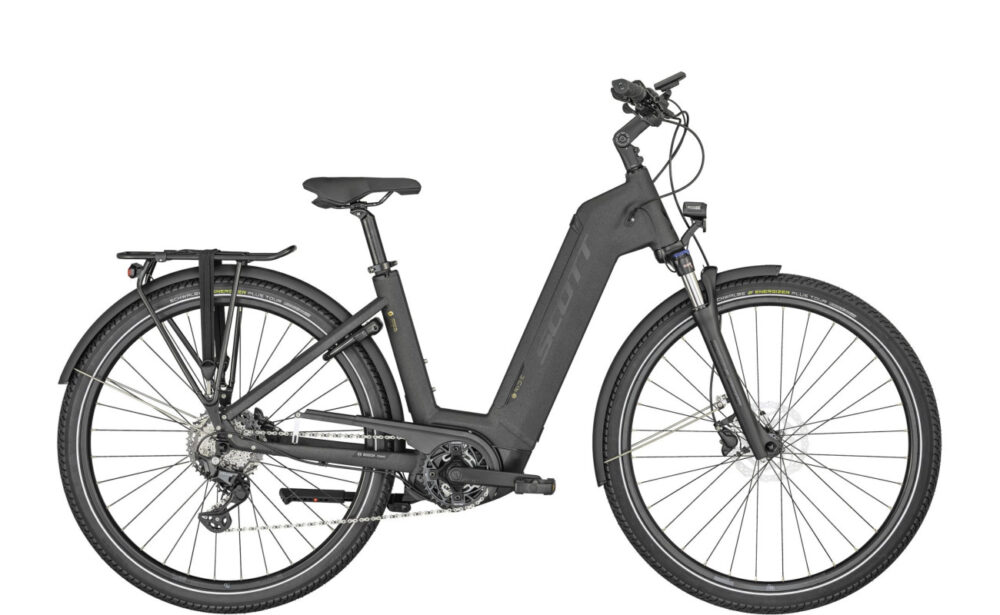

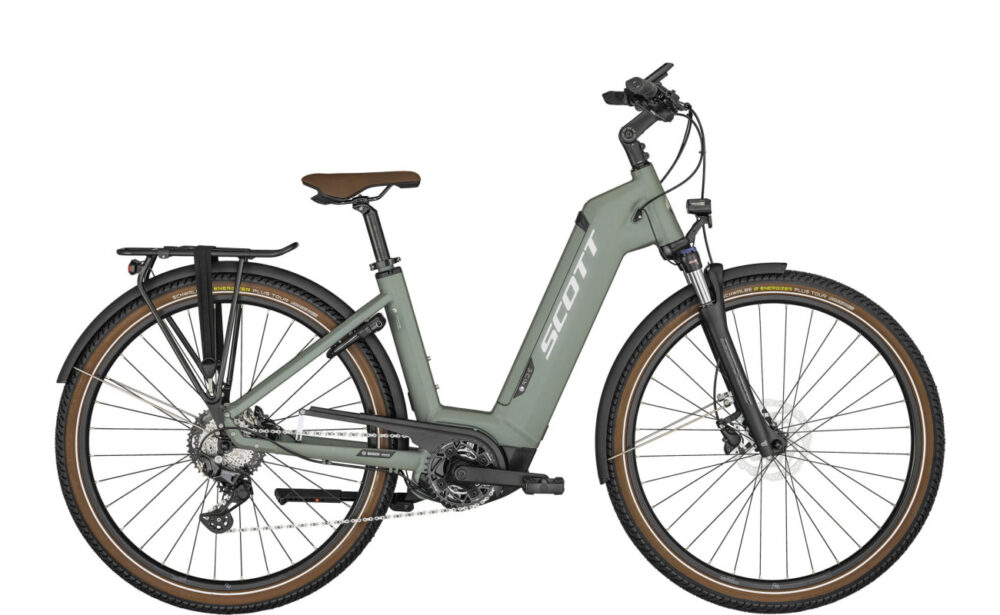

SCOTT Sub Sport eRide 20 USX

The SCOTT Sub Sport eRide 20 USX is a tough and rugged performer, suitable for everyday applications. It’s a simple, no-nonsense ebike with a wide range of great features and stylish good looks.

It’s low step, easy entry frame makes it a simple choice for many riders.

Based on 28″ wheels, the eRide 20 USX is full of great features and high level components. It’s extremely comfortable, provides ultra-tuned ergonomics, and is an easy to ride touring e-bike. It’s equally at ease on tarmac roads or loose terrain. The strong Bosch Performance CX (Gen4) motor pulls at 85Nm and couples with a long range 625Wh integrated battery. This combination make cycling a real breeze, and provide extensive range for leisurely rides out.

Huge comfort, long range

The Sub Sport eRide 20 USX is sensible and straightforward in design. It’s Suntour front forks are strong yet versatile. They cope easily with everyday bumps to ensure a smooth and even ride. The Deore 10-speed Linkglide gearing is smooth changing and effortless. Hydraulic disc brakes from Shimano ensure responsive and effective braking when required. The wheelset on the eRide USX is both strong and reliable, offering resilience, longevity and stability. Each wheel comprises a quality Shimano hub and Cross X17 rims which are more than up to the job in hand. Add to that a nice sized 55c Schwalbe Energizer Plus Tour tyre with puncture resistance and you have a really nice, confident and comfortable ride ahead.

Ultra bright lights feature on the SCOTT. On the front is a bright Lezyne 200 Lumen, whilst a top notch Superbright illuminates the rear. Featuring strong mudguards, front and rear, a clean ride is assured every time. A very useful Racktime™ rear carrier allows luggage to be easily attached and removed. Hassle-free!

The centrally mounted Intuvia 100 display from Bosch provides all the necessary rider information clearly and concisely.

The SCOTT Sub Sport eRide 20 USX is a real joy to ride and super comfy!

See our full range of SCOTT electric bikes HERE.

Motor	Bosch Performance CX (Gen4)
Battery	625Wh
Gears	Shimano Deore RD M5130SGS Durable Linkgilde / 10-Speed
Forks	SUNTOUR NVX 30 NLO DS QR 700C TAPERED / 63mm Travel
Brakes	Shimano BR-M200 Disc
Wheel Size	28"
Tyres	Schwalbe Energizer Plus Tour 700x55c
Colour	Dark Grey, Green
Frame Size	44cm (Extra Small), 48cm (Small), 52cm (Medium), 56cm (Large)

All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
