ORBEA Vibe H30 EQ

Sale!
Orbea Vibe H30 EQ - red
Ultra Light

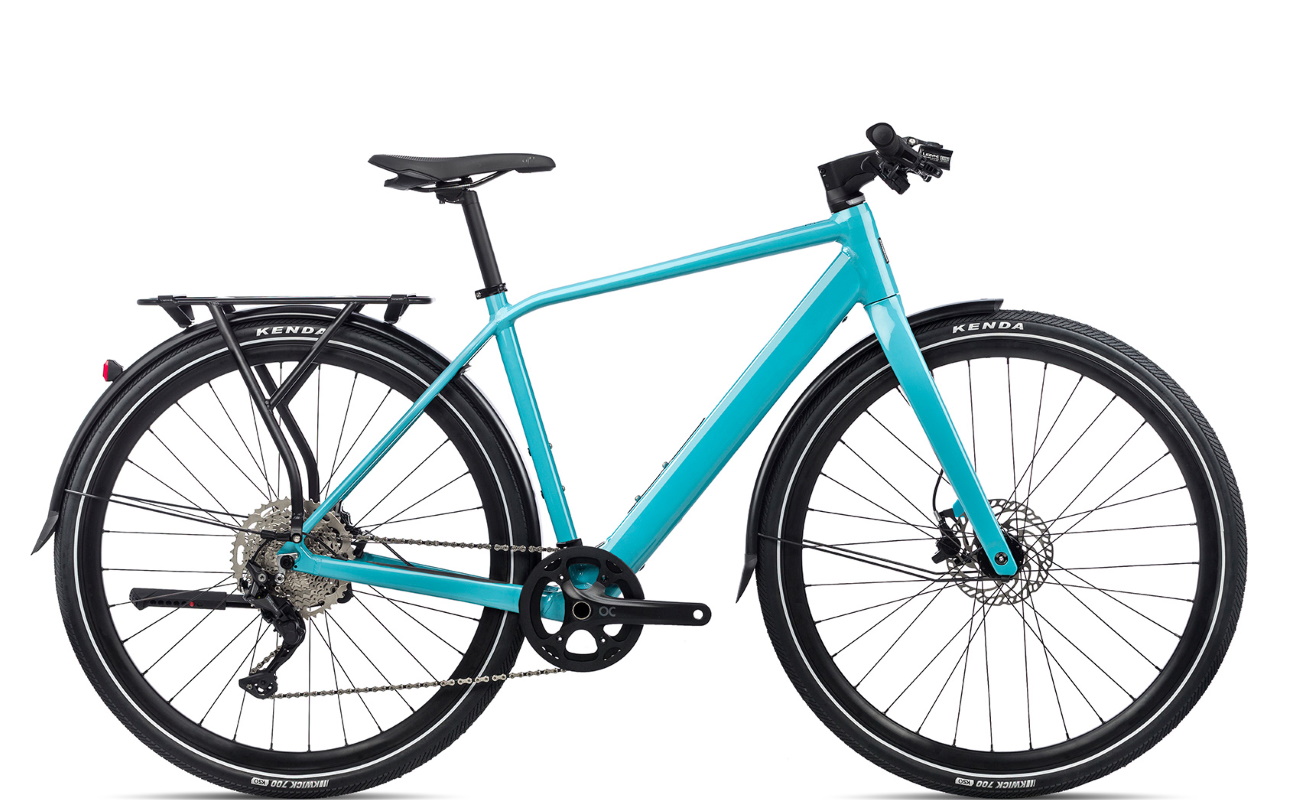

Orbea Vibe H30 EQ - blue

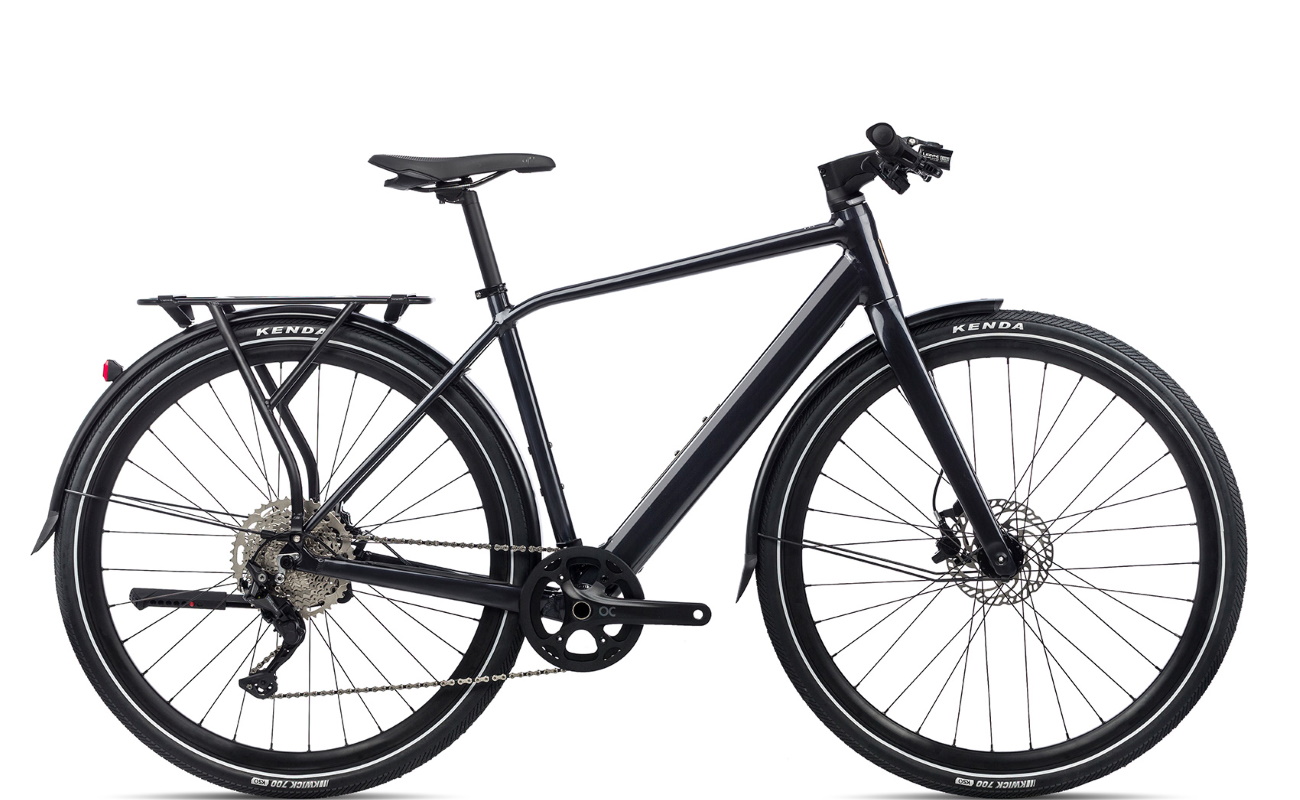

Orbea Vibe H30 EQ - black

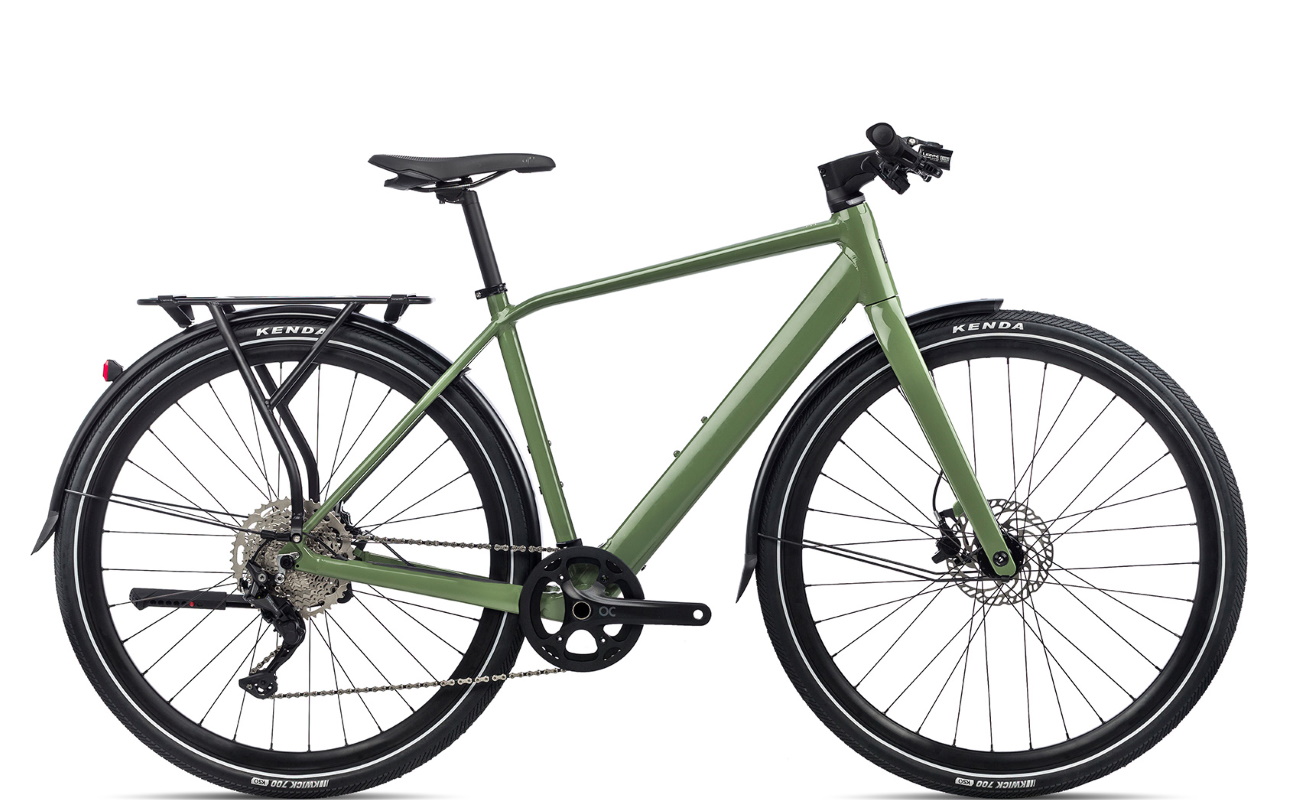

Orbea Vibe H30 EQ - green
Orbea Vibe H30 EQ - red
Orbea Vibe H30 EQ - blue
Orbea Vibe H30 EQ - black
Orbea Vibe H30 EQ - green

£2,944

• ULTRALIGHT •
• Shimano 10-speed •
• Aluminium alloy frame • Carbon forks •
• Ebikemotion E35 Plus motor • 250Wh •
• Additional Range extender battery to 450Wh •

0% Finance Available - Click HERE for details

ORBEA Vibe H30 EQ

The Orbea Vibe H30 EQ offers the commuter, city and weekend rider one of the most stylish and lightest ebikes on the market. Effortlessly blending style with safety, minimalism with performance, the Vibe H30 is an absolute joy.

The Vibe range of trekking ebikes are our lightest. These ultra light machines are over 10kg lighter than most of the competition.

Thanks to its exceptionally lightweight and sportive nature, it’s a very natural ride. The Vibe embraces your sweat and hard work, working in unison with your efforts to tick off the miles. There are no bulky components to interfere with the riding experience, hence distractions are minimal. It’s all about the ride.

The EQ denotes full mudguards both front and rear. Also, the addition of a rear carrier means up to 15kg of carriage can be taken onboard.

Ebikemotion X35 Plus Motor, Fully Integrated 250Wh Battery

Barely recognisable as a road bike with electric power, the Vibe H30 EQ is a highly affordable ebike that delivers. The combination of a strong and practically silent Ebikemotion X35 Plus motor and 250Wh battery ensures smooth power delivery and a helping hand when needed.

The engine offers an incredible torque thanks to its gearing, reaching 40Nm of torque with an optimal result at speeds up to around 15mph. These are ideal for commuting, city or road, right where it is needed. Simple and efficient. The Vibe embraces the phrase “less is more” by combining an ultra light ebike with high efficiency.

Also, thanks to a clever frame design, full battery integration adds further to the highly pleasing aesthetics. Totally discreet.

With three levels of assistance, the ORBEA Vibe H30 EQ is a real joy to ride and very flexible. Head winds and hills need not be quite so draining as they could be. A simple mode button sits on the top tube, allowing the rider to change assist modes as well as turn the bike on and off. Different colour modes show which level is current.

However, that’s not all. Orbea have a further trick up their sleeve, their Range Extender!

ORBEA Vibe H30 EQ Range Extender

Amazingly, a SECOND 200Wh battery, cleverly disguised as a water bottle can be added to the seat tube providing a total of 450Wh running time! This additional battery provides a huge 70% more range!

See our full range of Orbea ebikes HERE.

Motor

Ebikemotion X35 Plus
Battery

250Wh
Rear Derailleur

Shimano Deore M5120 SGS Shadow Plus, 10-speed
Cassette

Shimano CS-M4100 11-46t
Forks

Orbea Vibe Carbon fork
Seatpost

Alloy 27.2 Offset 20
Brakes

Magura MT30 Hydraulic Disc Easy Route Connection
Wheel Size

28"
Tyres

Kenda K1052 700x45C Reflective with puncture protection
Frame Size

49cm (M), 53cm (L), 57.5cm (XL)
Colour

Night black (gloss), Blue (gloss), Metallic Dark Red (gloss), Urban Green (gloss)
Warranty

2 years bike & battery
All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
