KTM Macina Kapoho Elite

£4,499

Bosch Performance CX-R 120Nm, Bosch PowerTube 800Wh, 160 mm RockShox 35 Silver TK suspension, Suntour TRI-AIR2 shock, Shimano XT 12-speed, Shimano 4-piston brakes


   260 reviews



       Posted on Google

   Maria Bell
 23 October 2026


   Martin at OnBike is very helpful and knowledgeable.
Update: I bought a bike and it is great, just got a trailer from amazon and Martin put it on my e-bike for me. He also gave me advice to ensure it remains safe to use.



     Posted on Google

   Karl Miller
 22 October 2026


   Highly recommend, Martin was full of great advice as I was after a mid-range e-MTB, Martin did not try to sell me something more than what I need, like some shops do. He built the bike and charged the battery for collection, gave a nice easily understood quick guide to using the Bosch Purion 200 and sent us on our way, love the bike so much, 130 miles in 2 weeks! I crashed and Martin had the bike back to check over free of charge, he a nice, honest person who I would highly recommend using if you are considering buying a bike. Please support local!



     Posted on Google

   Henry Pulford
 12 September 2026


   Excellent experience at OnBike Worcester. Martin was incredibly helpful and clearly knows his stuff - happy to talk through the options without any pressure. Great selection of ebikes and accessories. Highly recommended.



     Posted on Google

   Greg
 7 July 2026


   Came in with an issue on my bike and was resolved quickly



     Posted on Google

   Sam McGuinness
 12 June 2026


   From the very beginning, Martin was extremely helpful and guided me with the perfect choice. Always responded promptly. Set up the bike perfectly. Highly recommend.

Colour

Frame Size

Clear

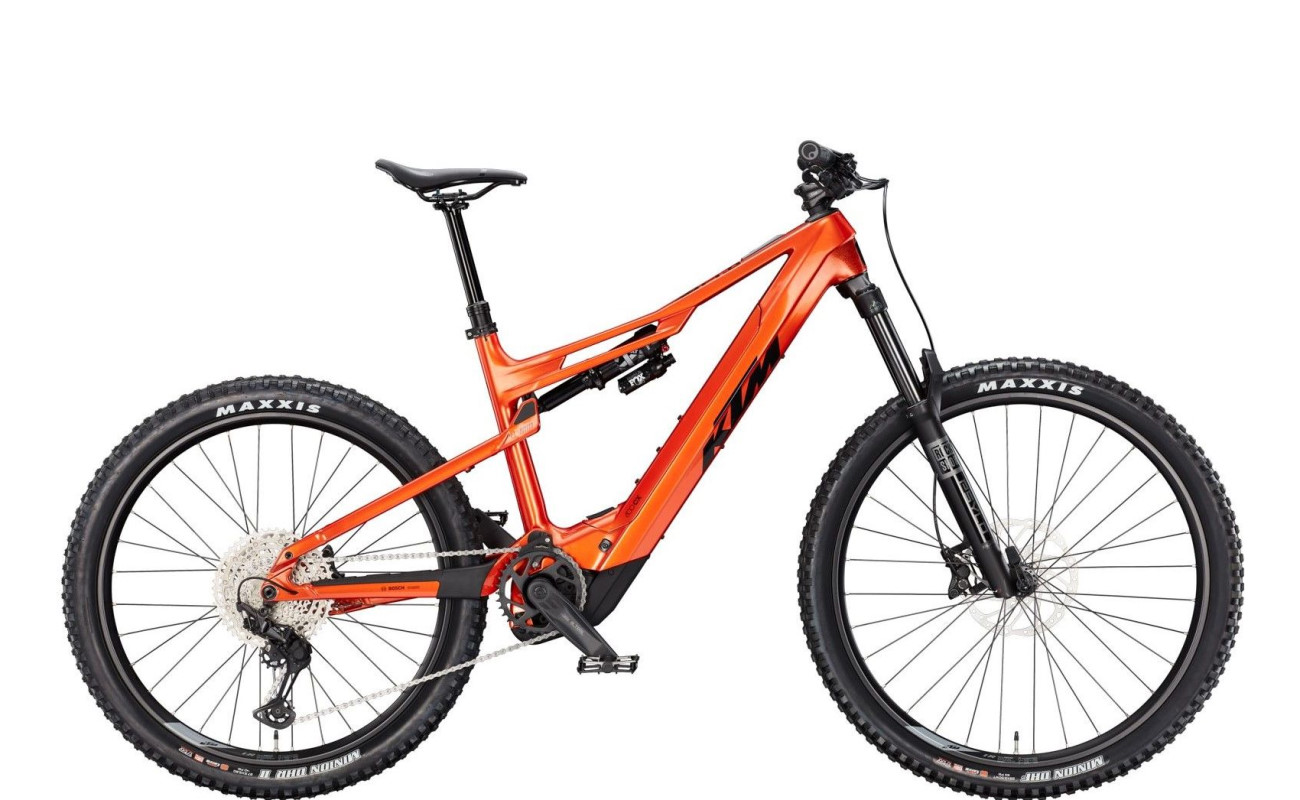

KTM Macina Kapoho Elite

The KTM Macina Kapoho Elite typifies what KTM are all about. The Elite has a generous specification and huge appeal.

A beautifully crafted Carbon frame ensures a nimble yet strong performance.

The KTM Macina Kapoho Elite combines uncompromising power with unprecedented connectivity. The Bosch Performance Line CX-R 120 motor provides unrivalled power at the bottom bracket. The Bosch CX-R is characterised by 120Nm, up to 750W of pedal assistance and easy pedalling above 25 km/h. In addition, pairing with the 800Wh PowerTube battery (removable, of course) means that the Kapoho Elite is perfect for endless trail fun.

A Mullet Setup and Great Components

Using a mullet setup of 29″ on the front and 27.5″ on the rear, the Elite performs on the most demanding terrain. Also, an energetic Bosch Performance CX-R drive in combination with a 800Wh battery give unmatched performance and range. Superb, decisive response is what the CX-R provides and drives through the roughest trails and downhills.

Fully equipped with a top end spec, the KTM Macina Kapoho Elite means business!

At the heart of this rugged performer is a top notch full suspension system. On the front is a nice pair of RockShox 35 Silver TK forks with 160mm travel. On the rear is a Suntour TRI-AIR2 3CR-Lockout providing silky smooth travel.

Furthermore, sporting superb grip and endurance at all times, Scwalbe Nobby Nic Performance tyres keep the Kapoho Elite on the straight and narrow. A really nice set of Ambrosio Meistern rims with Shimano hubs provide a strong and resilient base.

Braking is spot on and ultra responsive. A winning combination of Shimano M4100/MT420’s 4-piston hydraulic brakes on 203mm/180mm rotors ensure immense stopping power.

Key Features

Mac Kapoho PERFORMANCE CARBON 160 frame
Bosch PERFORMANCE CX-R (120 Nm / 750W)
Bosch PowerTUBE 800Wh
RockShox 35 Silver TK 29″ 160mm forks
Suntour TRI-AIR2 3CR-Lockout rear shock
Bosch Purion 200 display & remote
Shimano M4100 / MT420 4-Piston brakes
KTM Line II dropper seatpost

The KTM Macina Kapoho Elite offers an affordable specification, supreme looks and awesome performance.

See our full range of KTM eBikes HERE.

Motor	Bosch PERFORMANCE CX-R (120 Nm)
Battery	Bosch PowerTUBE 800Wh
Gears	Shimano DEORE XT M8100-12 SGS Shadow+, 12-speed
Cassette	Shimano DEORE M6200-12 / 10-51
Forks	RockShox 35 Silver TK 29" 160mm 15×110
Rear Shock	Suntour TRI-AIR2 3CR-Lockout 250×70
Brakes	Shimano M4100/MT420 4-piston
Wheel Size	Mullet: 29" front, 27.5" rear
Tyres	Front: Schwalbe Nobby Nic Perf. Folding 65-622 Rear: Schwalbe Nobby Nic Perf. Folding 70-584
Colour	Black Matt, Chrome Blue
Frame Size	43cm (Medium), 48cm (Large), 53cm (Extra Large)

All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
