SCOTT Sweep 20

Light Weight

£2,299

Bosch Drive Unit Hub Line (45Nm), 360Wh battery, fully equipped, Suntour suspension forks, Shimano CUES 9-speed gearing, hydraulic brakes


   259 reviews

Frame Size

Clear

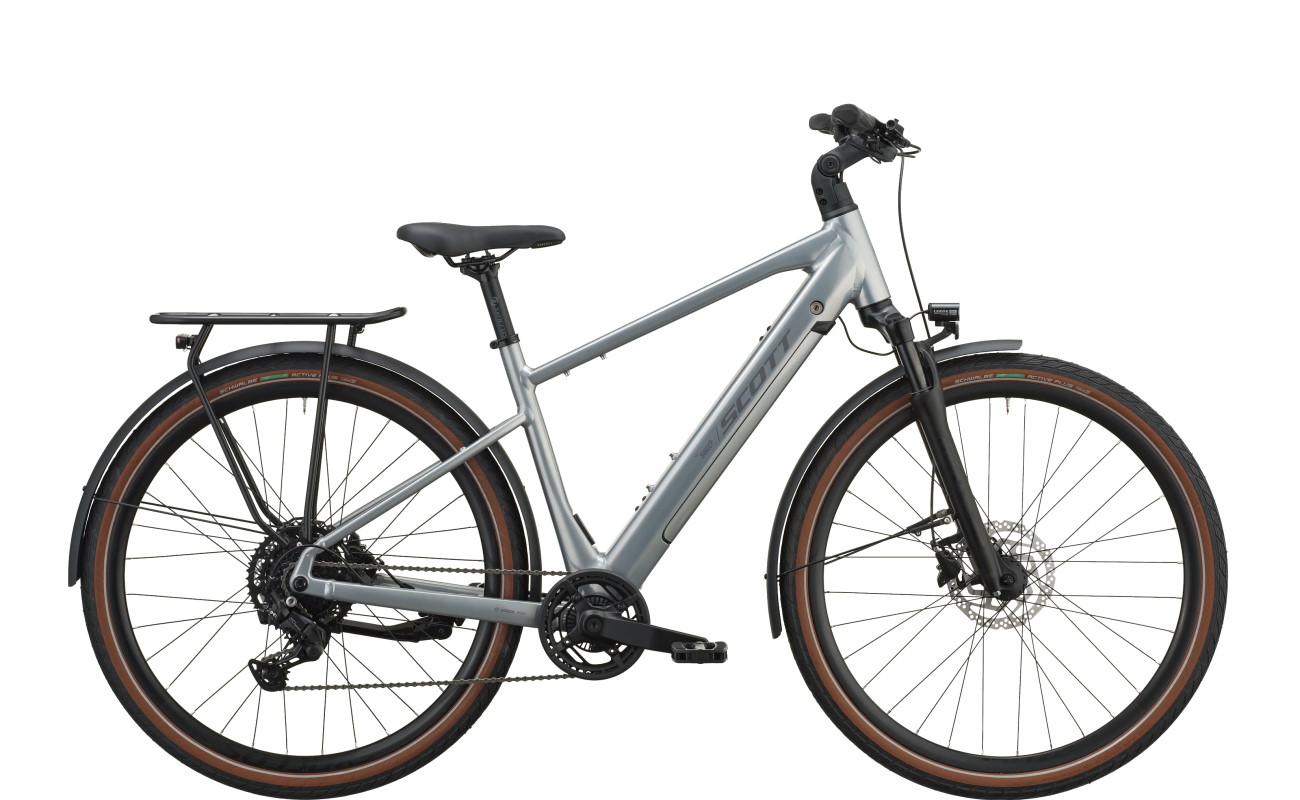

SCOTT Sweep 20

The SCOTT Sweep 20 could well be the perfect first eBike.

It’s almost identical to its brother, the Sweep 10, but offers front suspension forks to conquer more demanding terrain.

It’s easy to use, easy to handle, stylish and so sleek that you’d hardly guess it’s electric. It offers a truly joyful everyday riding experience in the city. Delivering a natural riding feeling, the Sweep 20 is powered by Bosch’s latest rear-hub drive unit producing 45Nm of torque and the efficiency you need for getting around town easily.

Its elegantly integrated 360Wh battery is easily removable and provides optimal range for everyday commuting. There’s also the option to add a range extender for even more fun!

Sporty and Elegant, Ready for the Day Ahead

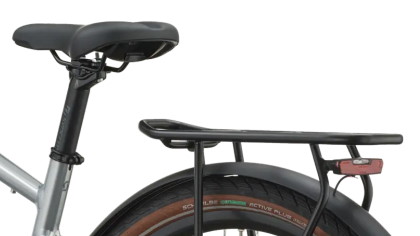

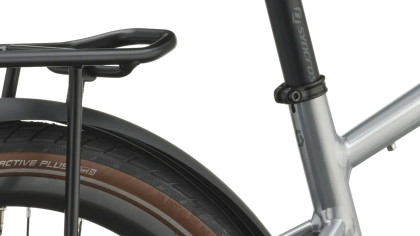

The Sweep 20 is everyday ready. It comes with a Racktime rear carrier for snap on luggage, robust mudguards and powerful Busch und Müller front lights. You’ll be able to see clearly in low light and be seen, no matter the conditions.

Shimano 9-speed gearing provides what’s needed for your local terrain. The naturally smooth ride inspires confidence whether you’re gliding along in the urban jungle or threading through more adventurous areas. With its sleek design and lightweight feeling the Sweep 20 delivers a smooth and easy riding experience throughout the city.

Bosch Drive Unit Hub Line

The Hub Line is a lightweight hub motor from Bosch with maximum torque of 45Nm. It delivers power of up to 400W. It’s modest in size, weighing around 2.3kg and has a diameter of only 100mm. Delivering an agile riding experience, this unique motor integrates seamlessly into the rear wheel.

almost invisible in the hub
super lightweight
theft protection feature

Super lightweight in nature, the Bosch Drive Unit Hub Line means an eBike that is agile and easy to carry. The combined weight of motor and battery is just under 5kg. With extensive range already on offer, the addition of Bosch’s PowerMore 250 drinks-bottle size battery means even longer rides.

The SCOTT Sweep 20 Features the Latest Bosch Technology

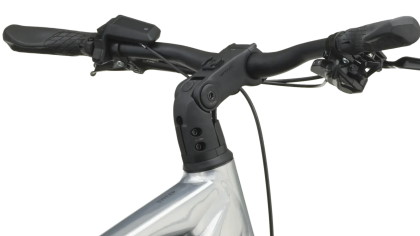

Bosch’s new SMART SYSTEM features on the SCOTT Sweep 20. Changes to assist levels are made via a Bosch Purion 200. In addition, all rider information is visible via a bright, colour backlit screen.

Superlite Aluminium Frame

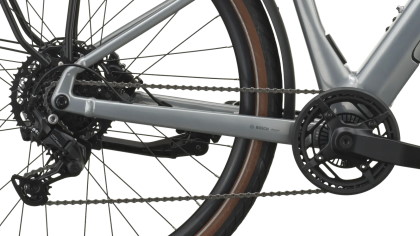

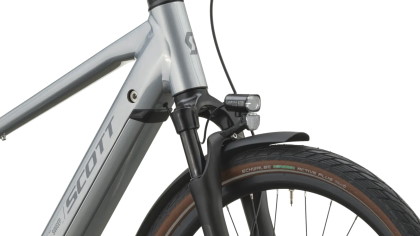

The Sweep 20 sports a superlite Aluminium frame. The Suntour suspension forks mean that the bike is suitable for a multitude of surfaces. Canal towpaths, roads, fire tracks in the forest are all accommodated for. The Shimano CUES 9-speed derailleur keeps things simple and is robust and silky smooth. A set of Shimano MT201 hydraulic disk brakes effectively tame the bike when needed.

A fine set of Schwalbe Super Moto 50-622 tyres provide exceptional grip, traction, and low roll resistance on a multitude of surfaces.

Beautiful Aesthetics

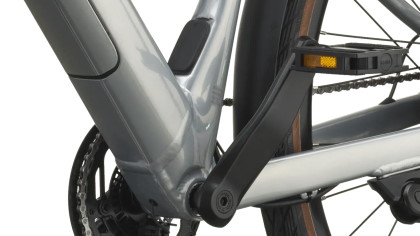

The Bosch PowerTube 360 battery integrates seamlessly within the Sweep 20’s frame producing a bike that’s barely recognisable as an ebike. Its flowing lines and stunning good looks are quite unique.

The SCOTT Sweep 20 is an eye-catching ebike representing great value for money!

Learn more about the Bosch Hub Line motor HERE.

See our full range of SCOTT electric bikes HERE.

Motor	Bosch Drive Unit Hub Line max. 45Nm (BDU30)
Battery	Bosch PowerTube 360
Gears	Shimano Cues RD-U4000 9-Speed
Shifter	Shimano Cues SL-U4000 With Display
Cassette	Shimano Cues CS-LG300, 9-Speed 11-46T
Forks	SR Suntour NEX-E25-DS COIL
Brakes	Shimano BR-MT201 2-Piston
Rims	X15 Disc
Wheel Size	28"
Tyres	Schwalbe Super Moto 50-622
Colour	chrome
Frame Size	44cm (Small), 48cm (Medium), 53cm (Large), 58cm (Extra Large), 60cm (Extra, Extra Large)

All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
