ORBEA Denna M40 Road: Lightweight Electric Road Bike

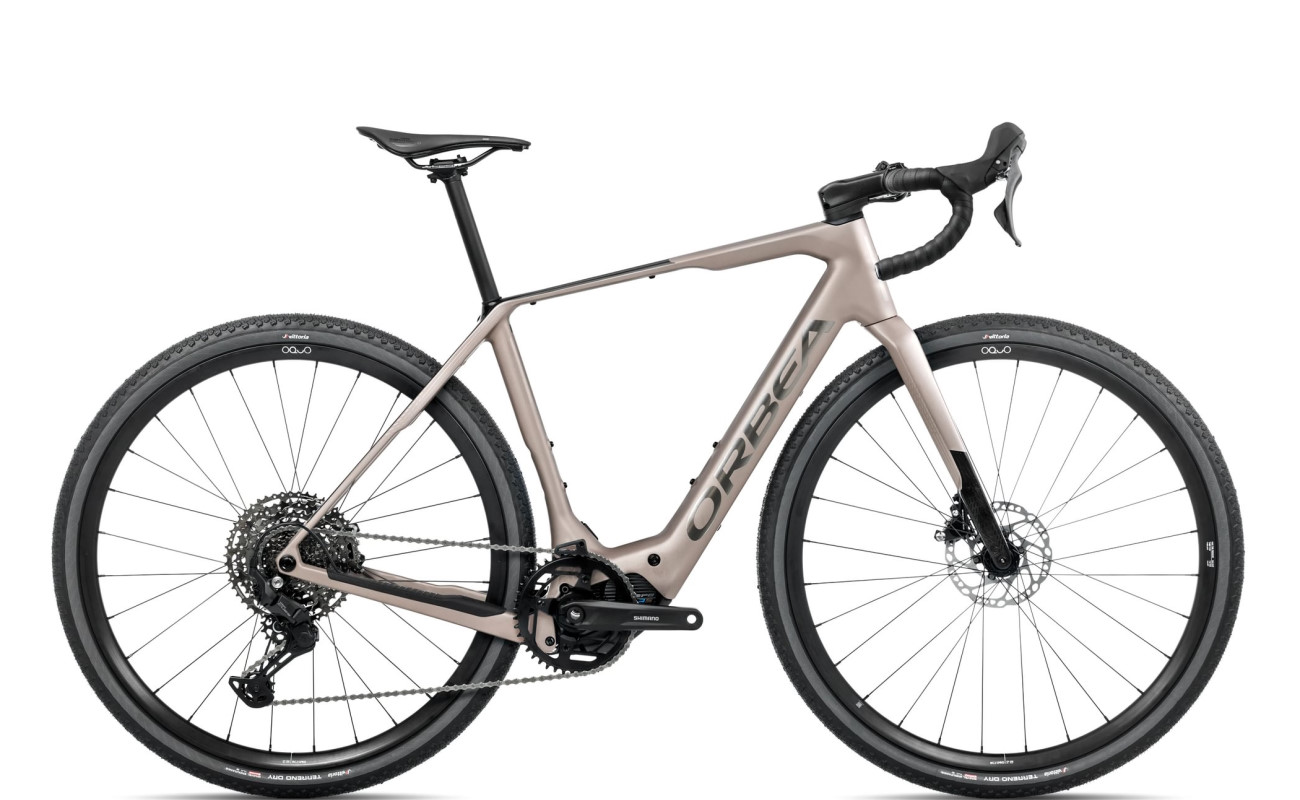

Orbea DENNA M40 - Nickel Matt - Carbon Raw Gloss

Light Weight

Orbea DENNA M40 - Escape Green Gloss - Foggy Matt

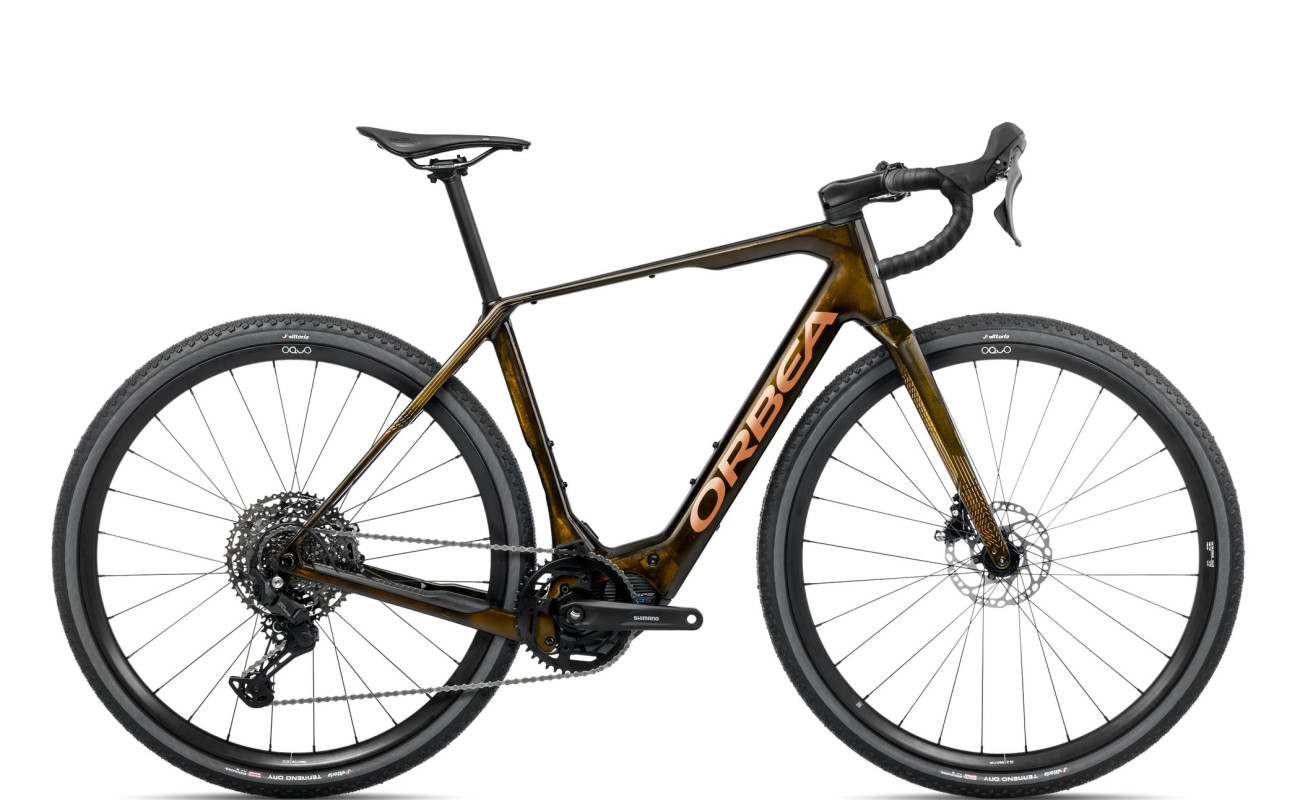

Orbea DENNA M40 - Caramel Carbon View - Golden Sand (Gloss)

£4,999

Full carbon frame, carbon forks, Shimano EP801 (85Nm) motor, Shimano Cues 11-speed, 420Wh battery, additional 210Wh range extender, Shimano RS405 hydraulic disc brakes

Colour

Frame Size

Clear

ORBEA Denna M40

The ORBEA Denna M40 Road bike is a superlative road and gravel eBike that embodies the spirit of boundless exploration. It’s crafted for riders who believe the best adventures are waiting for them.

Picture yourself cresting a ridge as the morning light breaks: every pedal stroke amplified by responsive EP801 assistance. The Denna M40’s carbon frame absorbs the chatter of the trail. It delivers you forward with composure. In addition, grip stays tenacious under broad tyres, while steering remains agile and precise. Each descent is met with confidence.

You know 85Nm of gravel-tuned push lies beneath your feet, yet always under your control. When daylight starts to fade, the 420Wh battery keeps the ride alive. You can extend it with the optional pack, letting the horizon beckon further with the ORBEA Denna M40 Road.

Frame & Comfort

Built from Orbea’s OMR carbon with strategically shaped absorption zones, the frame provides vertical flex to smooth out rough terrain. It maintains lateral stiffness for efficient power transfer and nimble handling. Furthermore, a low bottom bracket, refined chainstays, and a balanced trail tailored to each size deliver stable yet responsive steering, especially on mixed and loose surfaces.

Cleared for up to 50mm tyres, the ORBEA Denna M40 provides extraordinary flexibility to maximise grip and comfort over varied terrain. Experience comfort in all terrains with this unique eBike.

Power and Long Range

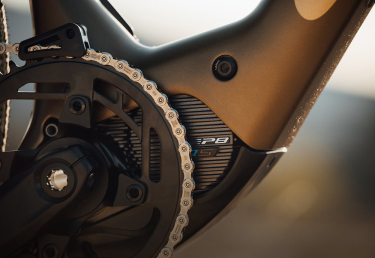

At the heart of the ORBEA Denna M40 Road is Shimano’s EP801 (RS Gen2 RC) mid-drive motor, optimised for gravel usage. Delivering up to 85Nm of torque, the power delivery feels natural and controllable, even on loose surfaces. Interestingly, the rider has a choice of modes, Gravel or Gravel+ of which both are customisable via Shimano’s e‑Tube smartphone app. This feature facilitates fine tuning and traction control.

A compact internal 420Wh battery achieves up to approximately 3,500m of climbing in Eco mode. This offers an impressive energy-to-weight ratio. Also, riders can extend range further with an optional 210Wh Range Extender. It is cleverly disguised as a water bottle that mounts on the frame.

Built-in sensors, compatibility with Garmin devices, and optional Shimano EN600 display let you monitor and customise performance on the fly. These features enhance your time with the ORBEA Denna M40 Road.

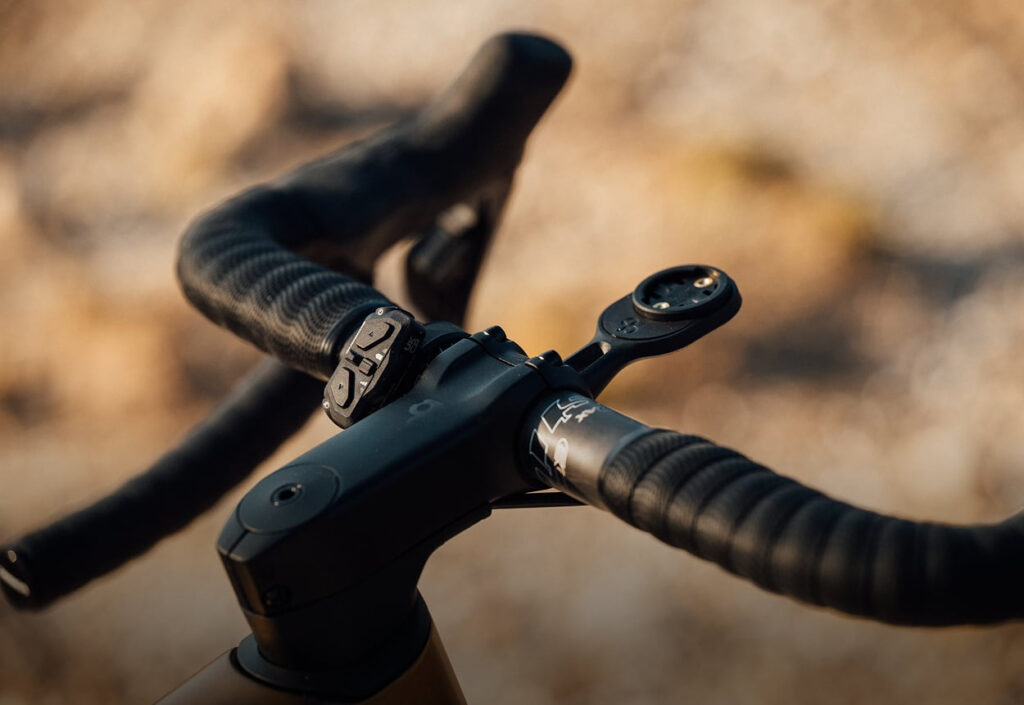

Drivetrain & Controls of the Denna M40

A Shimano CUES 11-speed derailleur provides smooth and relatively silent shifting. It couples with a wide range 11–50T cassette that handles steep climbs and flat sprints efficiently. As a result, this ensures crisp, durable shifting. Braking is gradual and highly effective thanks to Shimano RS405 hydraulic disc brakes. These offer confident, well-modulated stopping power across all conditions.

Equipped with Oquo Road Control RC25PRO wheels and Vittoria Terreno Dry Gravel G2.0 TLR 700x45c tyres (Graphene compound, tubeless-ready), this setup balances speed, grip, and resilience across mixed terrain. Consequently, this combination is perfect for the ORBEA Denna M40 Road rider.

Experience on the Trails

Whether riding forest tracks, gravel roads, or packed trails, the Denna M40 delivers:

A fluid, pedal-efficient feel from the motor’s refined assistance.
Supple, cushioned rides thanks to the carbon flex zones.
Precise handling with balanced weight distribution, built to inspire confidence on technical descents and rough surfaces.

See our full range of Orbea eBikes HERE.

Motor	Shimano EP801 (85Nm)
Battery	Orbea Internal 420Wh
Rear Derailleur	Shimano Cues U6000 GS Shadow
Cassette	Shimano CS-LG400 11-50t 11-Speed
Forks	Orbea Denna OMR ICR, full carbon, 1-1/8" – 1,5" tapered head tube compatible, thru axle 12x100mm, thread M12xP1
Seatpost	SP 0.2 Carbon, 27.2mm, Setback 0
Brakes	Shimano RS405 Hydraulic Disc
Wheel Size	700C
Colour	Caramel Carbon View – Golden Sand (Gloss), Escape Green Gloss – Foggy Matt, Nickel Matt – Carbon Raw Gloss
Frame Size	40cm (Extra Small), 44cm (Small), 47cm (Medium), 50cm (Large), 54cm (Extra Large), 57cm (Extra, Extra Large)

All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
