CUBE Editor Hybrid ONE 360 FE: Lightweight and Stylish

Light Weight

Only 20kg

£1,699

LIGHTWEIGHT, Bosch Drive Unit Hub Line (45Nm), 360Wh battery, fully equipped, Shimano Essa 8-speed gearing, amazing value


   259 reviews

Frame Size

Clear

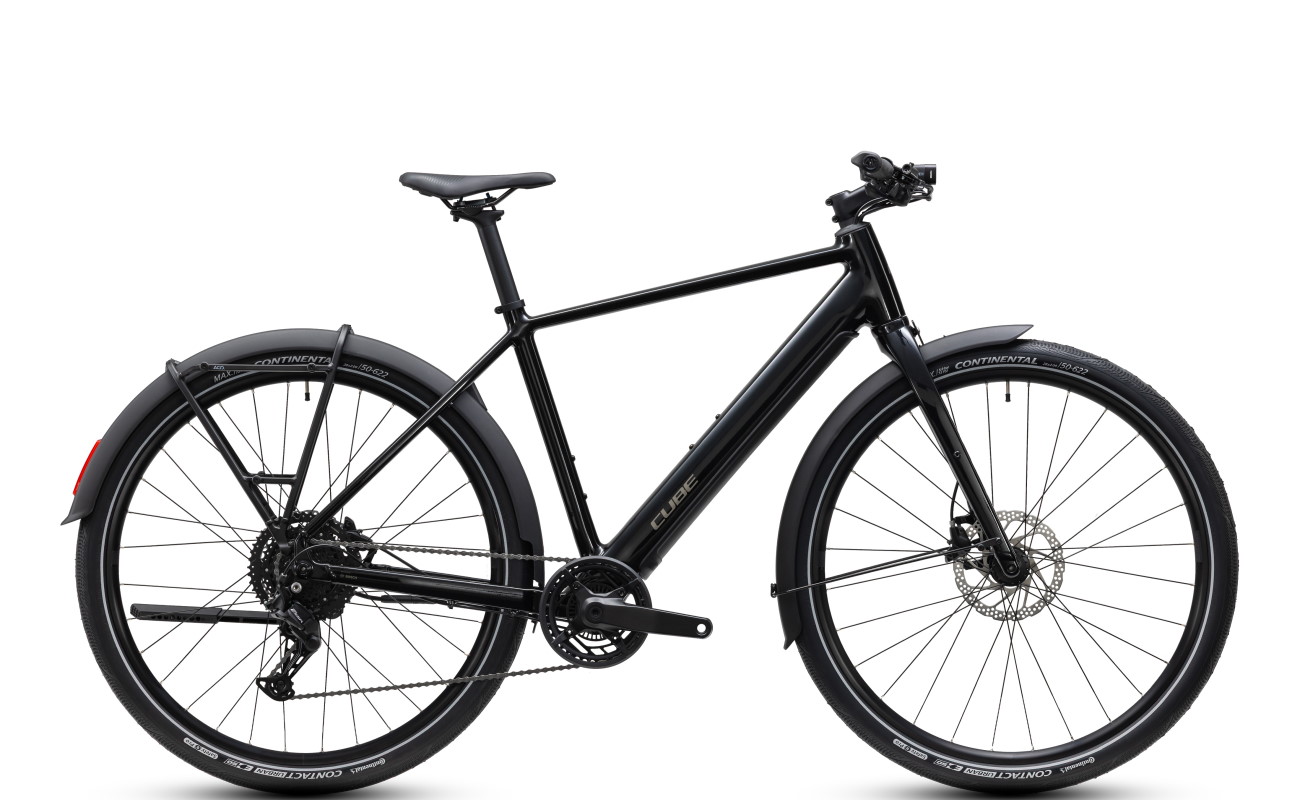

CUBE Editor Hybrid ONE 360 FE

The CUBE Editor Hybrid ONE 360 FE is one of several models in the ‘Editor’ range. It signals a new era for CUBE, and ultra low price point.

With beautiful aesthetics, the Hybrid ONE 360 is a super agile, lightweight eBike with the aim of improving urban mobility. As well as high quality components, it features Bosch’s new ‘Hub Line’ motor. Total bike weight is amazingly light at just 20kg (excluding pedals).

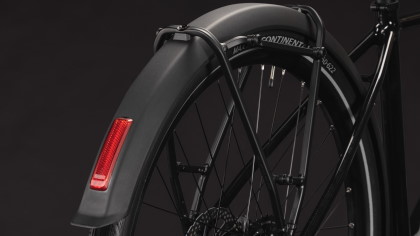

The phrase ‘FE’ means Fully Equipped. A semi-integrated rear carrier provides a neat, sturdy base for whatever you need to carry. With mudguards, kickstand and lighting set all included, it’s got everything that you need for city living.

Sporty and Elegant

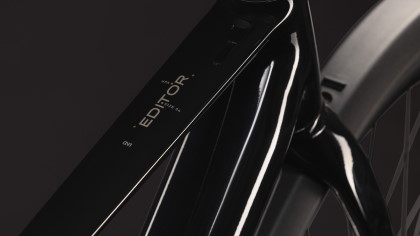

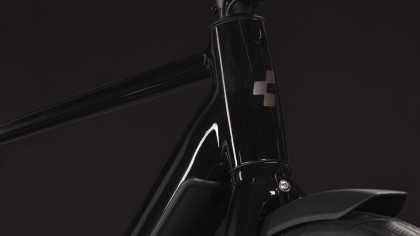

At first glance, the CUBE Editor Hybrid ONE 360 FE is both sporty and elegant. The clean lines of the aluminium frame are more reminiscent of a gravel bike than a city ebike. It has sharp looks thanks to the beautiful design of the frame. The way all cables neatly disappear into the headset keep everything nice and tidy.

Bosch Drive Unit Hub Line

The Hub Line is a lightweight hub motor from Bosch with maximum torque of 45Nm. It delivers power of up to 400W. It’s modest in size, weighing around 2.3kg and has a diameter of only 100mm. Delivering an agile riding experience, this unique motor integrates seamlessly into the rear wheel.

almost invisible in the hub
super lightweight
theft protection feature

Super lightweight in nature, the Bosch Drive Unit Hub Line means an eBike that is agile and easy to carry. The combined weight of motor and battery is just under 5kg. With extensive range already on offer, the addition of Bosch’s PowerMore 250 drinks-bottle size battery means even longer rides.

The CUBE Editor Hybrid ONE 360 FE Features the Latest Bosch Technology

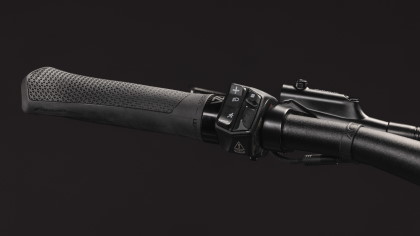

Bosch’s new SMART SYSTEM features on the Editor Hybrid ONE 360 FE. Changes to assist levels are made via a Bosch LED Controller. In addition, the Controller offers a USB-C charging function, LEDs with automatic brightness adjustment and a robust, ergonomic design. It’s ready for any weather and any ride.

High Level Performance

A superlite Aluminium frame forms the base of the Editor. Cube’s HPA forks ensure both a nimble and lightweight nature to this fine specimen. The Shimano Essa 8-speed derailleur keeps things simple and is robust and silky smooth. A set of Shimano MT200 hydraulic disk brakes effectively tame the bike when needed.

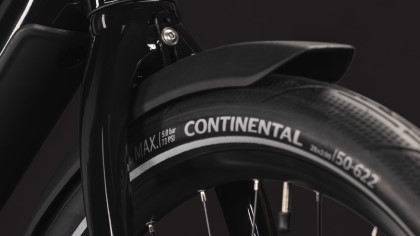

Also, the Continental Contact Urban, 50-622 tyres provide exceptional grip, traction, and low roll resistance on a multitude of surfaces. In addition, this beauty is equally at home in the urban jungle as it is on canal towpaths, fire tracks in the forest and the like.

CUBE Editor Hybrid ONE 360 FE Barely Recognisable as an eBike

The Bosch PowerTube 360 battery integrates seamlessly within the frame producing a bike that’s barely recognisable as an ebike. Its flowing lines and stunning good looks are quite unique.

The CUBE Editor Hybrid ONE 360 FE is simply hard to beat on price and represents immense value for money.

Learn more about the Bosch Hub Line motor HERE.

See our full range of CUBE electric bikes HERE.

Motor	Bosch Drive Unit Hub Line max. 45Nm (BDU30)
Battery	Bosch PowerTube 360
Gears	Shimano Essa RD-U2000-GS, 8-Speed
Shifter	Shimano SL-M315, Rapidfire-Plus
Cassette	Shimano CS-HG300, 11-45T, 8-speed
Forks	CUBE Editor HPA, 1 1/8" – 1 1/2" Tapered, Internal Cable Routing, 12x100mm
Brakes	Shimano BR-MT200, Hydr. Disc Brake (180/180)
Rims	ACID EX25, 32H, Disc, Tubeless Ready
Wheel Size	28"
Tyres	Continental Contact Urban, 50-622
Colour	black´n´irongrey
Frame Size	50cm (Small), 54cm (Medium), 58cm (Large), 62cm (Extra Large)

All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
