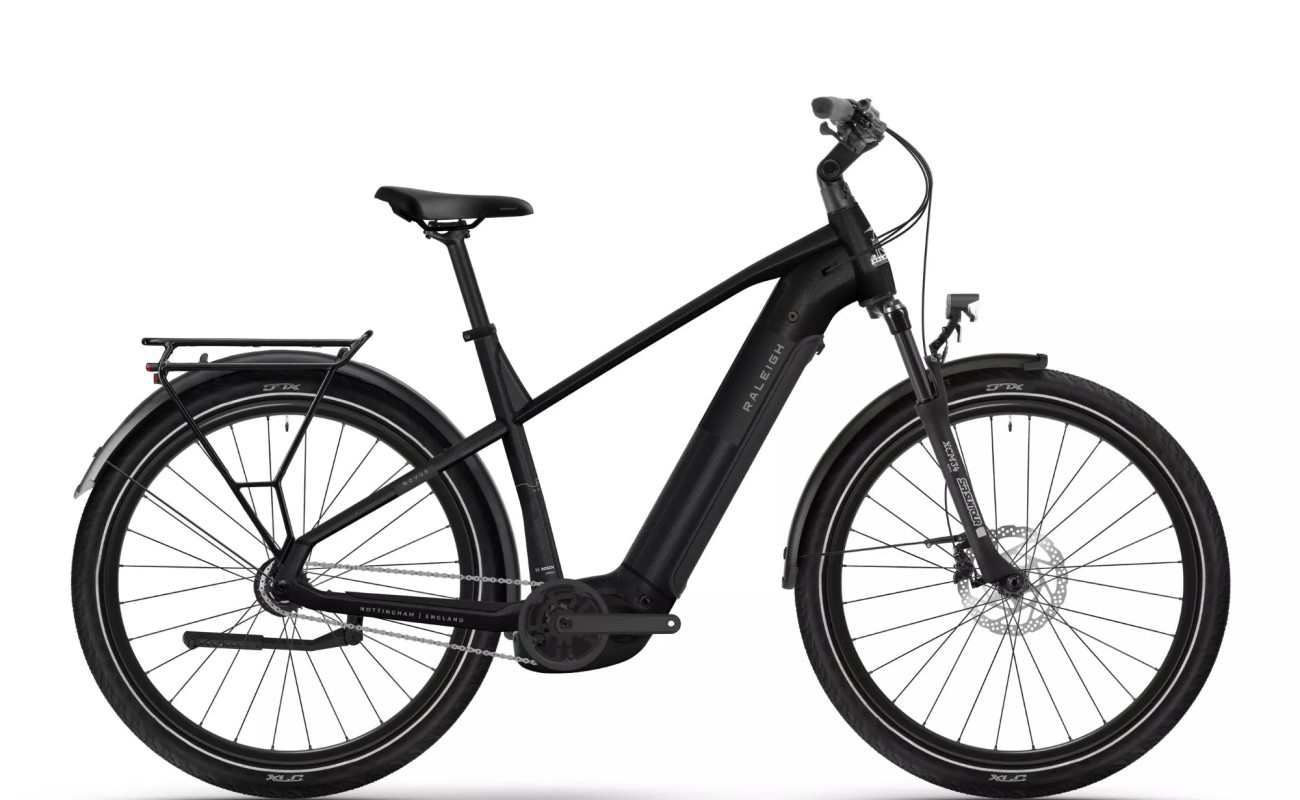

RALEIGH Novus Hub Gear Crossbar

Raleigh Novus Hub Crossbar

£2,899

Bosch Performance (75Nm) motor, Shimano Nexus 5-speed hub, Suntour XCM34 Disc Suspension fork, 100mm travel, 600Wh Bosch battery, ultra comfortable, low maintenance

RALEIGH Novus Hub Gear

The RALEIGH Novus Hub Gear is one of several new innovations from the UK’s most prestigious bicycle manufacturer.

The Novus builds on the already super successful Motus by offering a more off-road setup. With longer travel forks, 27.5″ tyres and a higher capacity battery, the RALEIGH Novus Hub is ready for more demanding terrain.

This beauty is all about delivering comfort, superb ride quality and low maintenance. With smooth, quiet shifting the Novus delivers precise gear changing even when stationary. No noise, no faff.

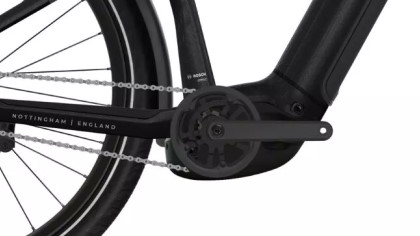

Powerful 75Nm BOSCH Performance Motor, Fully Integrated 600Wh Battery

The latest Bosch Performance Line motor delivers up to 75Nm of torque, and pairs with a more than adequate 600Wh battery. It’s removable and can be charged off the bike, or on it if necessary. The RALEIGH Novus Hub flattens hills and keeps you moving longer. Silent when it should be, powerful when it matters.

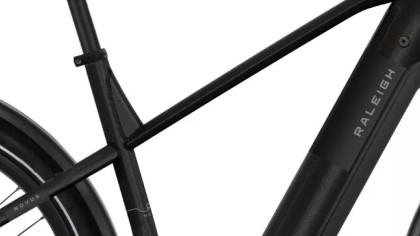

The designers at RALEIGH have come up with a totally new frame. It’s slimmer, lighter, and sharper than ever before.

Lights, mudguards, and a 25kg-ready MIK rack come as standard. Because why wouldn’t they? It’s everything you need. Nothing you don’t. It’s cycling, but without the struggle. No gridlock, no heavy breathing, no mental gymnastics. Just hop on and ride – to the office, the café, or nowhere in particular. Suddenly, detours feel like a good idea!

A Perfect All Rounder

Intended for wide appeal, the RALEIGH Novus Hub is ideal for all. Suitable for commuting, city use or for leisure rides in the countryside at weekends. In addition, this gritty performer from is reliable and user-friendly. Fully equipped for any eventuality, the Novus is a true all-rounder.

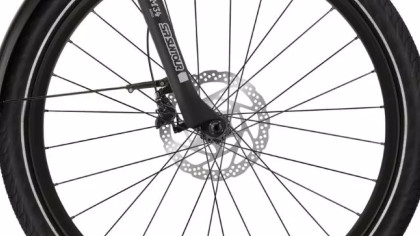

Shimano hydraulic disc brakes provide effective and decisive braking.

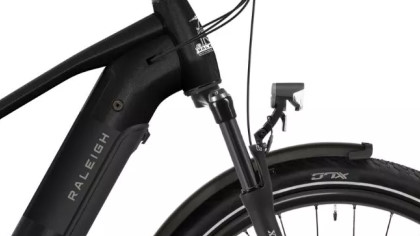

Additionally, the Suntour XCM34 Disc Suspension fork with 100mm travel provide a smooth and care free approach to all types of terrain. They are perfect for the job. The RALEIGH Novus Hub ensures a very comfortable ride at all times, being smooth and responsive.

Also:

  • comfy gel saddle enhances the ride further
  • comfort handlebar
  • powerful lights front and rear ensure visibility at all times.
  • 60-584 Schwalbe Grounder tyres absorb road vibration and are puncture resistant. They offer a good level of protection as well as comfort.

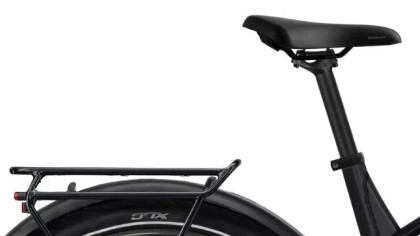

  • integrated strong rear carrier complements the frame beautifully and accepts a wide variety of luggage.

Rider information is provided by Bosch’s Purion 200 display, with full colour readout.

The RALEIGH Novus Hub is a real winner and offers outstanding value for money.

See our full range of RALEIGH ebikes HERE.

Motor

Bosch Performance Line 75Nm
Battery

600Wh
Gears

Shimano Nexus 5-speed hub
Forks

Suntour XCM34 Disc Suspension Fork 100mm Travel
Brakes

Shimano MT200 Hydraulic Disc Brake, 180mm
Wheel Size

27.5"
Tyres

60-584 Schwalbe Grounder
Colour

PLATINUM CHROME GLOSS
Frame Size

40cm (Small), 45cm (Medium), 50cm (Large), 55cm (Extra Large)
All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
