Orbea Urrun 20: Discover Distant Horizons on Two Wheels

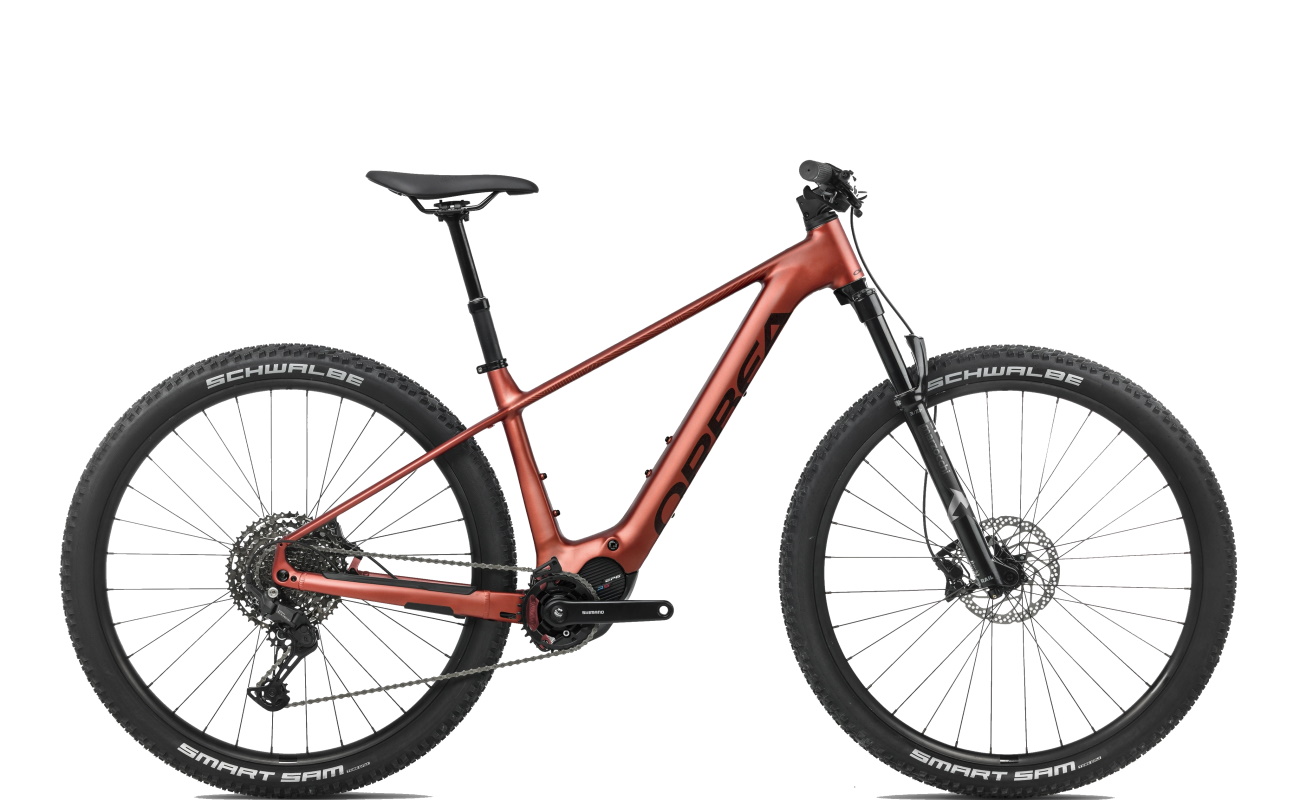

Orbea URRUN 20 - Mars Red (Matt) - Cosmic Bronze (Gloss)

Light Weight

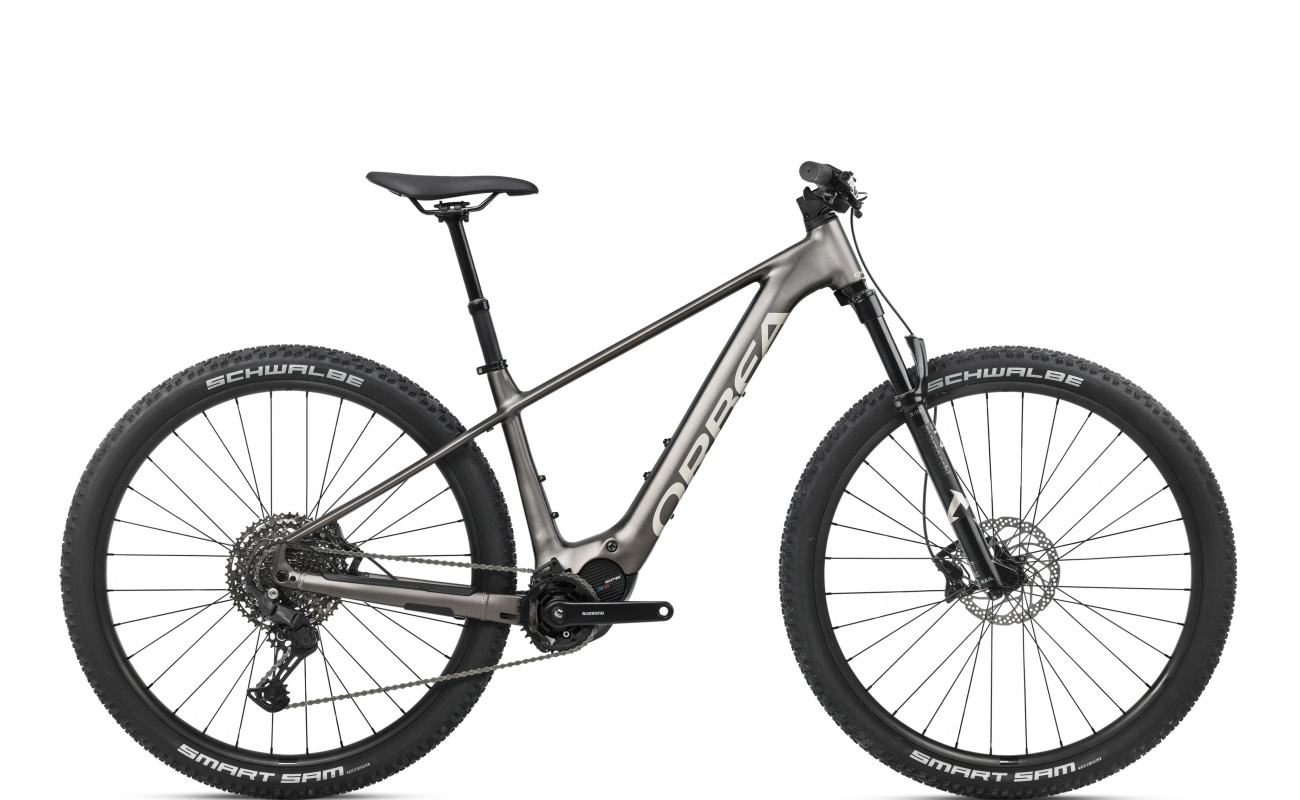

Orbea URRUN 20 - Magnetic Bronze (Matt) - Silver (Gloss)

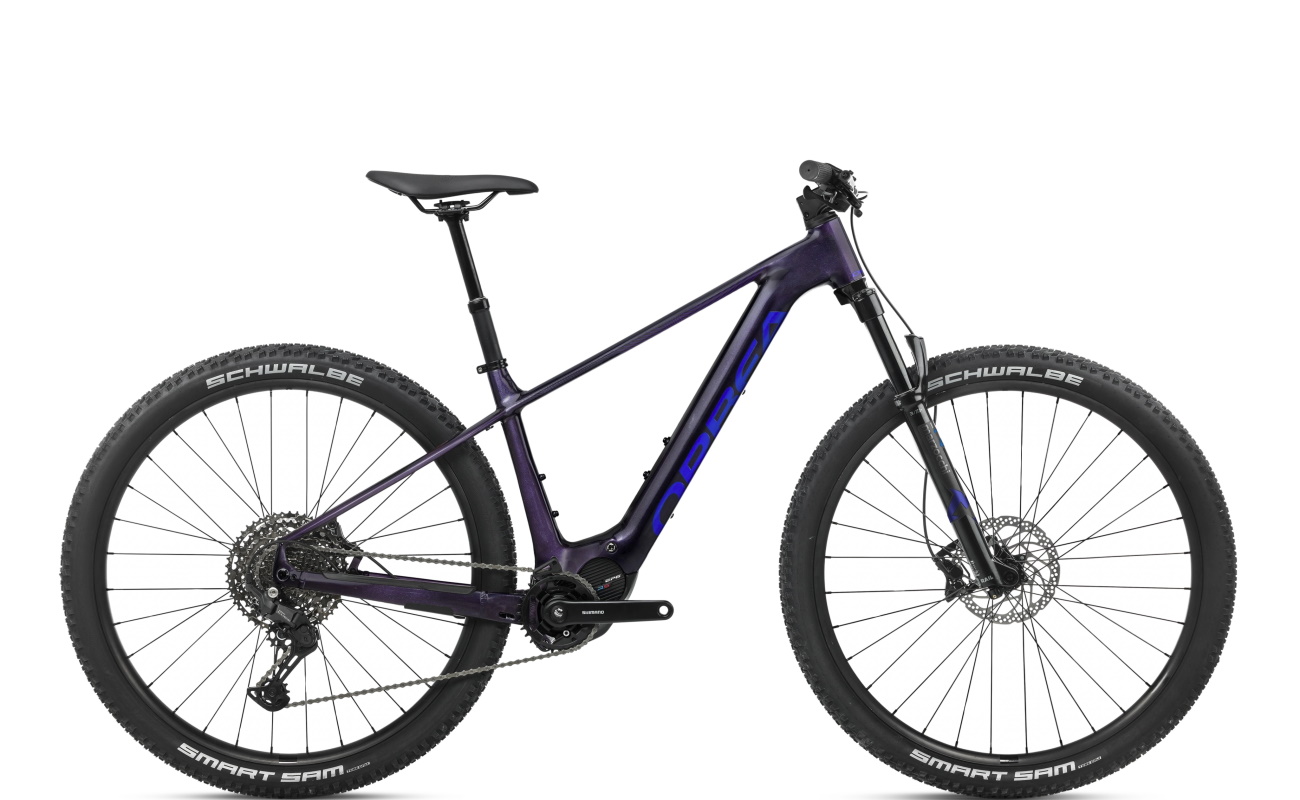

Orbea URRUN 20 - Tanzanite - Blue(Gloss)

£3,199

ULTRALIGHT, Shimano Cues 11-speed, Shimano EP600 85Nm motor, Marzocchi Bomber eBike optimized forks, 630Wh battery, Shimano MT420 Hydraulic Disc brakes, 4-piston

Colour

Frame Size

Clear

ORBEA Urrun 20

The Orbea URRUN 20 eMTB is one of the lightest eMTB hardtails on the market! It boasts a powerful but natural feeling motor.

Urrun means “far” in the Basque language. This innovative eMTB is without doubt a bike to take you far and explore distant horizons. However, the name holds more significance to Orbea. Urrun is about the long journey and how far they have come.

With new technologies and innovative integrations, it’s safe to say that Orbea is proud to have Urrun in the family. Escape, enjoy bigger adventures, go further and explore harder, there are no more excuses.

Natural Power

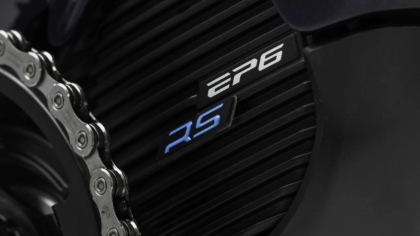

The Orbea URRUN 20 eMTB uses the Shimano EP6 RS (Rider Synergy) motor, developed in an exclusive collaboration with Orbea. This little beast kicks out 85Nm of torque. Ride Synergy (RS) is Orbea’s integrated system where the power, weight, interface and range are considered together to offer an unbeatable, balanced ride.

This isn’t just an EP6 with finely tuned torque. It’s a totally new control system. The design provides the quietest, most natural feeling assistance possible with no lag or drag. The EP6 RS is optimised in the 75-95rpm cadence range. Just as you are pedal harder, the motor responds instantly with more power, and this is one of the reasons it feels so alive and natural.

The Orbea URRUN 20 eMTB EP6 RS motor is also configurable via the Shimano e-Tube Project app. It’s compatible with the RS Tool Box so that you can access more data about your ride via your Garmin device.

Fantastic Autonomy

The Orbea engineering team has combines this motor with a 630Wh battery. Its complete integration in the frame reduces the overall system weight and improves stiffness, which translates into better and easier bike handling.

Designing this electric bike and carefully considering all the elements results in unbeatable efficiency. The combination of the totally new light and compact electric ecosystem, the efficiency of the EP6 RS motor and the new generation of lighter and stiffer frames makes Orbea’s range of electric mountain bikes very efficient.

Orbea URRUN 20 eMTB: a new generation of aluminum frames

Orbea has created a super light frame of the highest quality, offering one of the lightest chassis on the market.

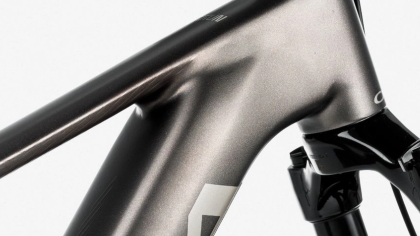

This weight saving is possible thanks to Orbea’s hydroforming process and triple-butted tubes. These allow very tight control of the tube wall thickness, allowing a reduction in weight in certain places. In addition, this also reinforces the areas that are subject to greater stress. As if that wasn’t enough, Orbea has applied polished welding technology for an impeccable finish.

Another area where Orbea has allocated its resources is in the integration of the Shimano EP6 RS motor in the frame. The “Gravity Casting Interface” integrates the motor in a very clean and compact way inside the frame, keeping it completely protected. For the lower part, Orbea has developed its own protective cover that shields the motor from any impact, weather or unforeseen events.

New Standard in Integration

One of the most striking features of the new URRUN is the integration of its cables in the handlebar area. Orbea has developed a handlebar and stem that integrates the wiring, routing display and control cables inside the handlebar. Also, both the brakes and dropper post cables are routed safely through the stem and headtube.

Adventure-ready Geometry

URRUN offers a balanced geometry that maximizes fun for any type of rider. The geometry offers the greatest possible control in all situations, with a comfortable position for any adventure.

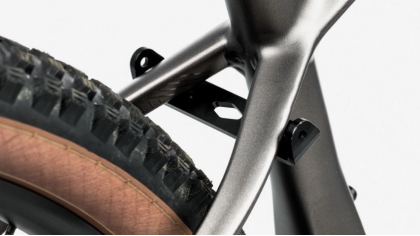

Additionally, the geometry is combined with 29” wheels, wide 2.4” tyres, with a tire clearance of up to 2.6” and a 120mm ebike-specific fork for greater comfort and safety.

Key Features

85Nm Shimano EP6 motor with RS tuning
630Wh battery
120mm front fork
smooth polished welds

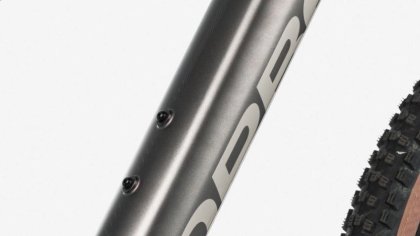

a custom mounting kit allows the easy addition and removal of accessories

The Orbea URRUN 20 is available in four sizes, ranging from S to XL, and in three elegant colours.

See our full range of Orbea ebikes HERE.

Motor	Shimano EP600
Battery	Orbea Internal 630Wh
Rear Derailleur	Shimano Cues U6000 GS Shadow
Cassette	Shimano CS-LG400 11-50t 11-Speed

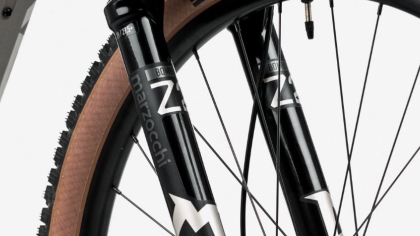

Forks	Marzocchi Bomber Z2 120 QR15x110 E-Bike Optimized
Seatpost	OC Mountain Control MC22, 31.6mm, Dropper
Brakes	Shimano MT420 Hydraulic Disc
Wheel Size	29er

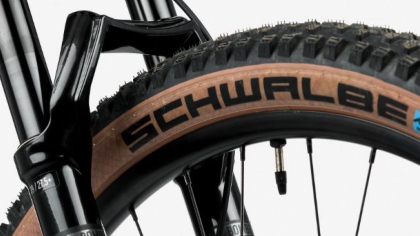

Tyres	Schwalbe Smart Sam Performance, 29×2.35, Addix, Black
Colour	Magnetic Bronze (Matt) – Silver (Gloss), Mars Red (Matt) – Cosmic Bronze (Gloss), Tanzanite – Blue(Gloss)
Frame Size	40cm (Small), 42cm (Medium), 45cm (Large), 50cm (XL)

All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
