ORBEA Wild M10

Sale!

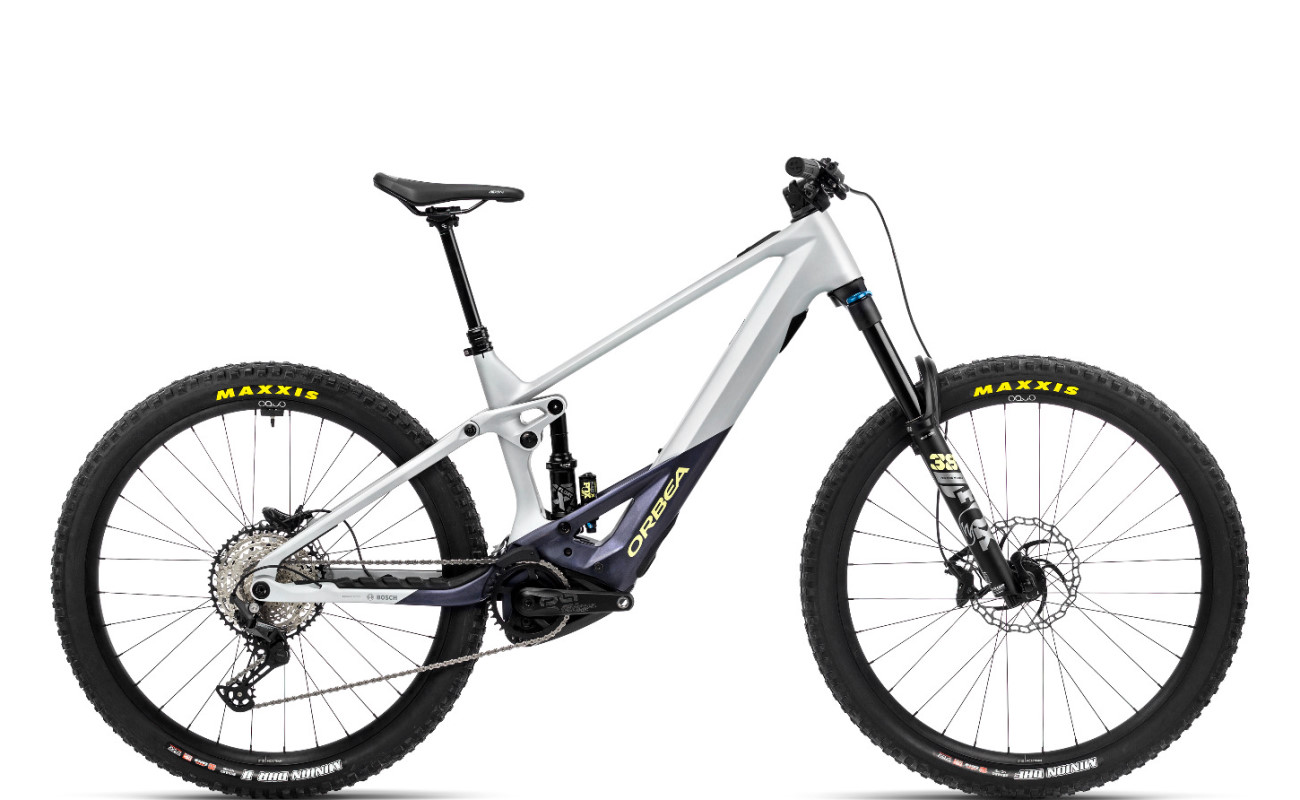

Orbea Wild M10 - Halo Silver - Tanzanite Carbon View (Matt)

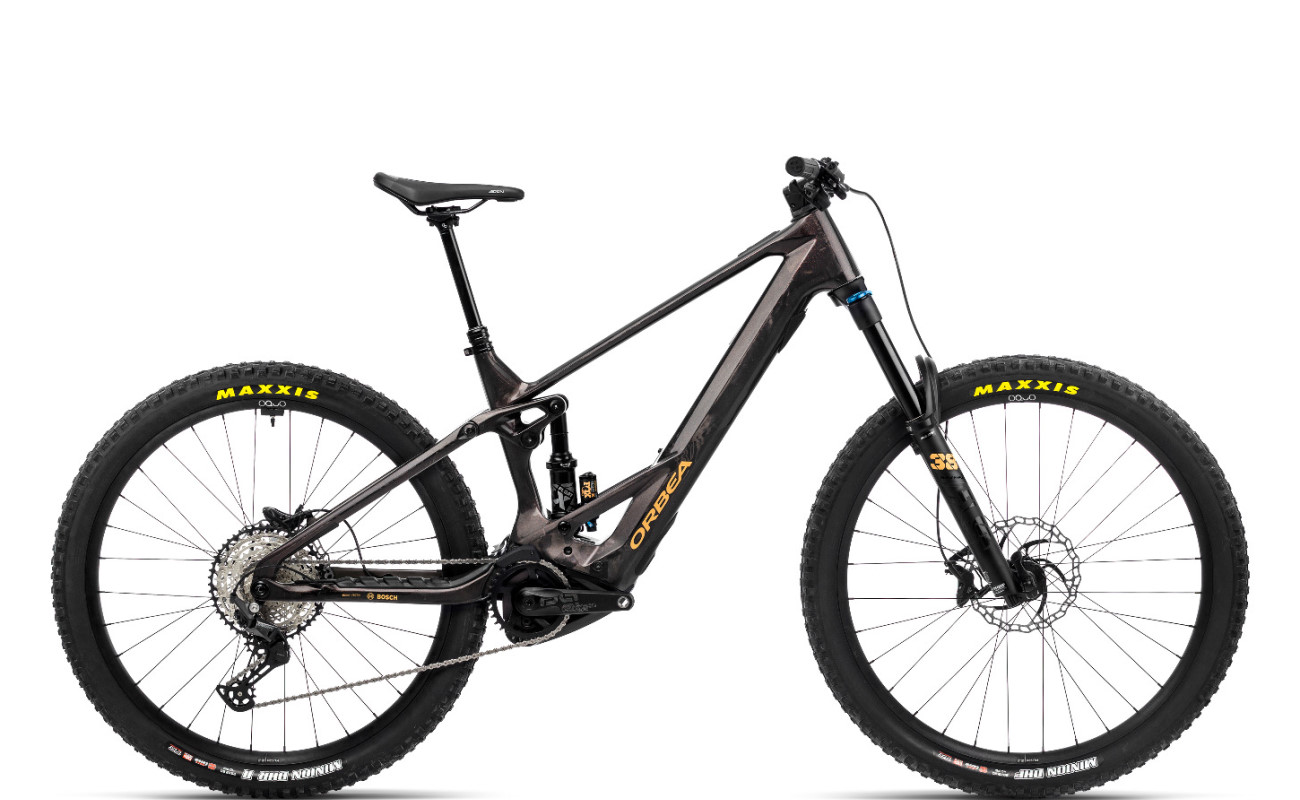

Orbea Wild M10 - Cosmic Carbon View (Matt-Gloss)
Orbea Wild M10 - Halo Silver - Tanzanite Carbon View (Matt)
Orbea Wild M10 - Cosmic Carbon View (Matt-Gloss)

£7,599

• Carbon frame • 750Wh •
• Bosch Performance CX (Gen4) motor •
• Shimano XT M8100 SGS Shadow Plus, 12-speed •
• FOX suspension, front & rear • OQUO Mountain Control rims •

0% Finance Available - Click HERE for details

ORBEA Wild M10

The Orbea Wild M10 pushes the boundaries of Enduro with a superb specification and immense performance.

Carbon Main Frame

The carbon main frame, Orbea Monocoque Race (OMR) blends together high modulus and high strength fibres. The 750Wh Bosch PowerTube disappears elegantly into the down tube and balances the bike. The alloy rear triangle complements the carbon front perfectly, delivering both performance and responsiveness. The Boost 148 rear triangle, oversized bearings and slacker head angle for greater stability add to the razor-sharp handling, no matter how hard you push. There is even room for a bottle holder.

Enjoy clever design and sophisticated suspension kinematics, or simply focus on the trail. New riders benefit from more comfort and stability, whereas riders with more experience will feel unleashed. The Wild range of eMTBs are indeed something very special.

A very nice Fox Float X Performance with Trunnion Mount and the Fox 38 Float Performance 160 suspension fork are a great match. Together, they provide a controlled and progressive suspension performance that swallows up even the toughest chunks.

Bosch Performance CX (Gen4), Smart System & More!

The combination of Bosch’s Performance CX (Gen4) pushing out 85Nm and long range 750Wh battery ensures awesome power delivery AND range. Thanks to a super cool frame design, they’re fully protected too, so even the most ragged terrain isn’t a concern.

Featuring Bosch’s Smart System, System Controller and Mini Remote, you’ll have the very latest tech. The System Controller sits neatly on the top tube away from trouble. On the bars is the Mini Remote, a simple unit comprising just two buttons; on/off and riding mode.

Top Quality Components

Super slick Shimano XT M8100 SGS Shadow Plus 12-speed gearing harmonises perfectly with the Shimano CS-M7100 10-51t 12-Speed cassette. Shimano Deore shifters ensure clean and precise indexing, which is both effortless and responsive.

Full control on the trails is guaranteed. The M10 has a winning combination of a 29″ Maxxis Minnion DHF 2.6″ on the front and DHR II’s on the rear. At 2.60, both tyres ensure agility and full control. A great set of OQUO Mountain Control MC32TEAM eBIKE rims provide superb rigidity and strength. Stopping power is highly responsive thanks to a fine set of 4-piston Shimano M6120 hydraulics on a set of 203 rotors.

Orbea’s ‘Secure Battery System’

Lighter : Stiffer : Fewer Components

Clean Cockpit

Mini Remote on bars  : System Controller on Down Tube

Clean Lines

Sealed Internal Cables : Cable Pass System

Quality Components & Design

29er Traction with Optimised Chainstays

The Orbea Wild M10 is a true E-Enduro with a superb specification, great options and a super slick look.

** NOTE – certain components on the bike are upgradeable. Please phone 01905 611774 for details.

See our full range of Orbea ebikes HERE.

Motor

Bosch Drive Unit Performance CX (Gen 4) 85Nm
Battery

750Wh
Gears

Shimano XT M8100 SGS Shadow Plus, 12-speed
Cassette

Shimano CS-M7100 10-51t 12-Speed
Forks

Fox 38 Float Performance 160 Grip 3-Position QR15x110 E-Bike Optimized
Rear Shock

Fox Float X Performance Trunnion 2-Position Adjust custom tune 205x65mm
Seatpost

OC MC20 Mountain Control Dropper, 31,6mm
Brakes

Shimano M6120 Hydraulic Disc
Wheel Size

29"
Tyres

Front: Maxxis Minion DHF 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Rear: Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Frame Size

41.5cm (S/M), 43.5cm (L), 46cm (XL)
Colour

Cosmic Carbon View (Matt-Gloss)
Halo Silver – Tanzanite Carbon View (Matt)
Warranty

2 years bike & battery
All sizing information is a guide only. If you have any questions about bike sizing, our expert team is here to help. Call us on 01905 611774.

How do I measure my height?

With your shoes off, stand upright against a wall, with your shoulders back and legs together. Use a pencil to make a small mark on the wall above your head (make sure you hold the pencil parallel to the floor). Then measure from the floor to your mark, in centimetres or feet and inches.

How do I measure my inside leg length?

With your shoes off, stand upright with your back against a wall. Place a book/ruler between your legs, level with your crotch. Then measure from the floor to the top of the book/ruler, in centimetres or feet and inches (it’s easier if a friend helps).

Q & A

Do all brands of ebike use the same unit of measurement?

No. Most brands show sizing in centimetres, however some use a S/M/L system, and others use inches. The table above includes all of these variations to help you find the right size.

Which size should I go for if I'm in between those listed?

If your measurements suggest that you have a choice of two different sizes, then in the end it’s a personal choice. Here are some rules of thumb to consider: Touring/Trekking ebikes - choose the smaller size. It is possible to make a smaller frame bigger (for example, by raising the saddle or fitting a longer the stem), whereas if the frame itself is too big for you, it’s likely to be less comfortable and won't feel right. eMTBs - choose the larger size. You’ll find an eMTB with a slightly larger frame easier to handle than one that feels cramped. You can always fit a shorter stem if necessary to reduce the reach to the handlebars.

How are ebike frame sizes measured?

An electric bike’s frame size is calculated by measuring the distance from the top of the seat tube (where the seat post inserts), to the centre of the front chainring. Sizing Guide
